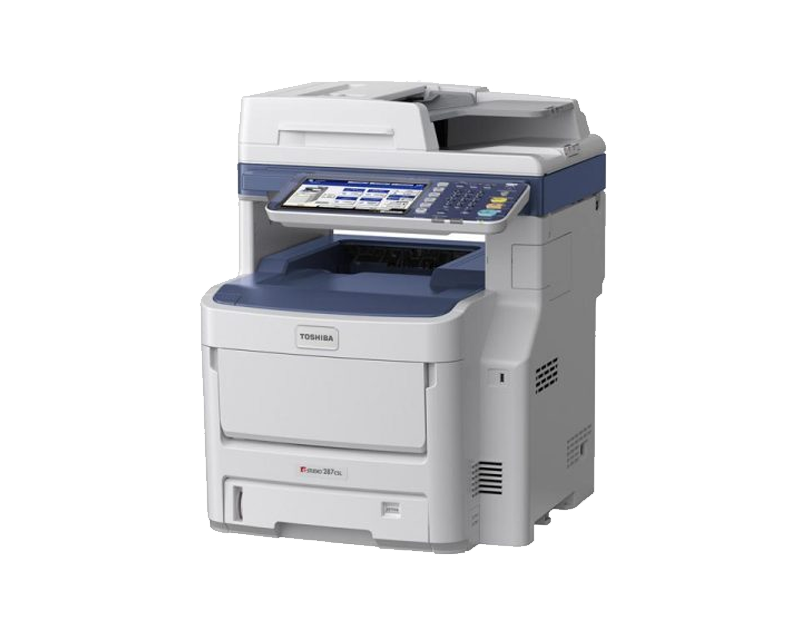

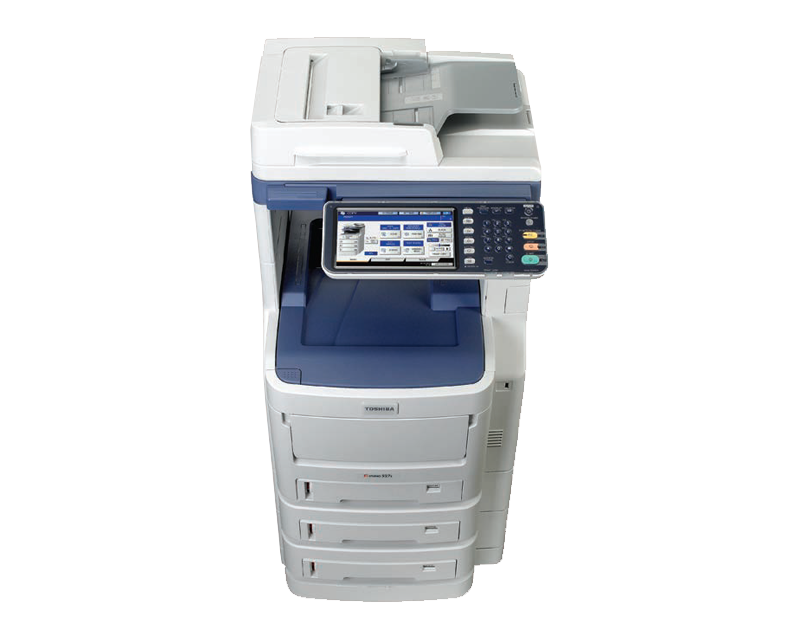

Toshiba e-Studio

The e-STUDIO477SL combines the input and output needs of the most demanding user with crisp A4 printing and true multitasking with workflow support and flexibility. This model is compact in design and easily integrates monochrome image quality and gives you a multifunctional A4 document production at a speed of 47 pages per minute.

Download Brochure Make an Enquiry Contact us


Features of the Toshiba e-Studio

GENERAL

Control Panel
9" (22.8 cm) colour touch panel LCD
Dimensions & Weight
522 x 604 x 675 mm (W x D xH), ~51 kg
Paper Size & Weight
Cassette: A5-A4, 64-220 gsm, Bypass: A6-A4, 64-250 gsm, banner paper (up to 216 x 1321 mm, 64-128 gsm)
Controller Type
Toshiba e-BRIDGE
Warm-up Time
Approx. 60 seconds
Inner Output Tray
500 sheets
Paper Capacity
1 x 530 sheets (Cassette), 100 sheets (Bypass), Maximum 2,630 sheets
Memory
Toshiba Secure HDD 320 GB1)/ 2 GB RAM
Print Speed
B&W: 47 ppm
Automatic Duplex
A5-A4, 64-220 gsm
Interface
10/100/1000 BaseT (incl. IPv6), High Speed USB 2.0, WLAN* (IEEE802.11b/g/n)

PRINT

Resolution
600 x 600 dpi (5 bit), 1,200 x 600 dpi (1 bit PS driver only)
Page Description Languages
XPS, PCL 6 and PostScript 3 compatible
Print Functions
Universal Printer Driver, One-Touch Templates, Driver plug-ins, Print from USB, Multiple pages per sheet
Supported Systems
Windows 8/7/Vista/Server 2008/ Server 2003 (32/64bit), Server 2012/Server 2008R2 (64 bit), Mac OS X 10.2-10.8, Linux/Unix, Citrix, Novell NetWare (NDPS), SAP, AS/400

SCAN

Scan Functions
WS scan, Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, SPX/IPX, local), Meta Scan2), Scan to Box (e-Filing), WIA, TWAIN
Resolution
Max. 600 x 600 dpi
Scan Speed
Colour & Monochrome: 40 ipm (300 dpi)
Document Feeder
Simplex: max. 100 sheets, A6-A4, 60-105 gsm Duplex: max. 100 sheets, A5-A4, 60-105 gsm
Scan Modes
Auto-Colour (ACS), Colour, Greyscale, Monochrome
File Formats
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, Searchable PDF2) (and other formats like DOCX, XLSX, RTF, TXT, PDF/A)2)

FAX

Transmission Speed
Approx. 3 seconds per page
Incoming Fax Routing
To shared folder (SMB, FTP, IPX/SPX), E-mail, e-Filing
Communication
Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Network Fax
Driver for Windows 8/7/Vista (32/64 bit), Windows Server 2012 R2/Server 2008 R2 (64 bit)
Compression
JBIG, MMR, MR, MH

COPY

Resolution
Scan: max. 600 x 600 dpi, Print: max. 2,400 x 600 dpi
Colour Modes
Monochrome
First Copy Output Time
Monochrome: approx. 13 seconds
Zoom
25-400%
Copy Modes
Text, Text/Photo, Photo, Image smoothing, Printed image, Map
Copy Functions
Electronic sort, ID card copy, Edge Erase, 2-in-1 / 4-in-1 mode
[This Class 1 laser product complies with IEC60825-1]. Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Productivity and paper specifications are related to paper size of A4 and a paper weight of 80 g/m2 if not otherwise mentioned. Warm-up time and print speed may vary depending on the operating environment.

1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

* Optional

Enquire about the Toshiba e-Studio

Optional Extras:

More about the Toshiba e-Studio

SPACE SAVING

The e-STUDIO477SL is a compact A4 size MFP that adopts a compact LED print head. Because it takes up less space than an A3 size MFP, it can be installed in locations such as small office or retail shops, where space is limited.

REFINED USER INTERFACE

The operation panel adopts the same large, easy-to-read, 9-inch / 22.9cm colour LCD touch screen as A3 size models. The user interface is also the same as for A3 size models, eliminating confusion in offices with a combination of A3 and A4 size devices.

WIDE RANGE MEDIA COMPATIBILITY

The e-STUDIO477SL supports envelopes, postcards and long forms up to 216 × 1,321mm. Paper types with thicknesses of 64-220g / m² can be supplied from a drawer, and up to 250g / m² thick paper can be supplied by bypass feed. This satisfies a full range of printing needs.

SECURITY

MFPs are subject to increasing demand to safeguard data, amid growing concerns over information security. The e-STUDIO477SL is compatible with a variety of communication protocols used to protect information security. The achieves advanced security without sacrificing ease of use, thorough self- encryption HDD, user authentication and access control. Other powerful security features include the retention of access logs, and generation of encrypted PDF.
