Toshiba e-Studio

Experience scintillating colour with a small footprint, the NEW e-STUDIO2010AC packs  an industry-leading 10.1" Colour Touch panel designed to help users connect and work more efficiently.
Compatible with AquaAce Water-resistant paper.

Download Brochure Make an Enquiry Contact us


Features of the Toshiba e-Studio

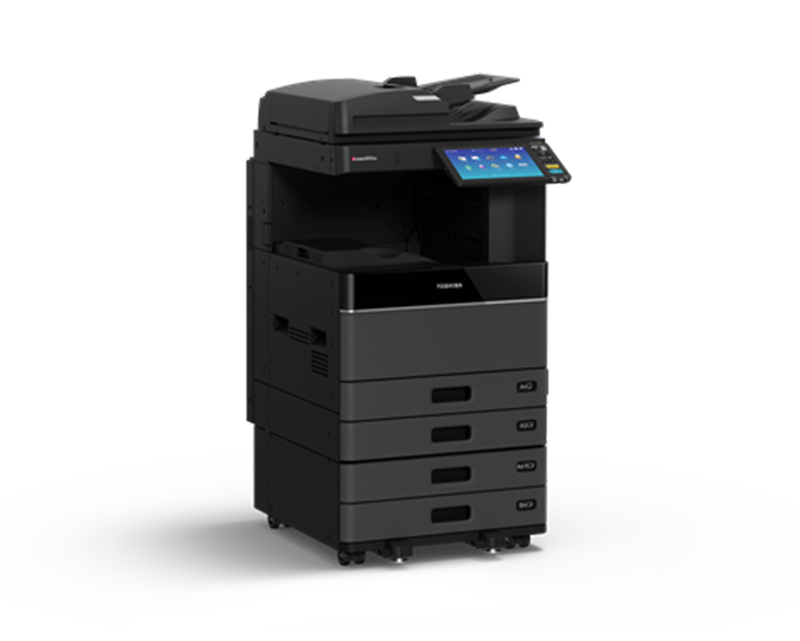

GENERAL (image shown with optional specs)

Control Panel
10.1" Color WVGA Touch Screen Tilting Display
Dimensions & Weight
575 (W) x 586 (D) x 662 (H) mm and Approx. 57 kg
Paper Size & Weight
Cassette: A5R-A3, 60-163 g/m2. Bypass: 100 x 148 mm-A3 mm, 52-209 g/m2.
Controller Type
Toshiba e-BRIDGE Next
Warm-up Time
Approx. 13 Seconds from low power mode
Inner Output Tray
550-sheet capacity
Paper Capacity
1 x 250 sheets (Cassettes), 1 x 100 sheets (Bypass). Maximum 2,900 sheets
Memory
Toshiba Secure HDD 320 GB. Std 2MB RAM, Max 4GB RAM
Print Speed
Colour: 20 ppm (A4)
Automatic Duplex
Automatic Duplex Unit (60-163 gsm)
Interface
RJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-speed), Optional 802.11b/g/n Wireless LAN, Optional Bluetooth

PRINT

Resolution
600 x 600 dpi, 600 x 1,200 dpi (1 bit, PostScript driver only)
Page Description Languages
PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Functions
Universal Printer Driver, Driver Templates, Driver plug-ins*, Print from USB, Hold print, Tandem printing, Email Direct Printing
Supported Systems
Windows® Vista, Windows Server 2008/R2, Windows 7, 8, 8.1, 10, Windows Server 2012/R2, Macintosh® (Mac OS × 10.6, 10.7, 10.8, 10.9, 10.10, 10,11), Unix®, Linux®

SCAN

Scan Functions
Scan to File, E-mail, e-Filing, WS Scan, USB, Scan Preview
Resolution
Maximum 600 x 600 dpi
Scan Speed
Reversing Automatic Document Feeder2): up to 73 ipm (300 dpi) in colour and monochrome
Document Feeder
100-sheet capacity, A5R-A3, 35-157 g/m2
Scan Modes
Standard: Full Color, Auto Color, Monochrome, Grayscale
File Formats
Monochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.) Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)

FAX (optional)

Transmission Speed
Up to 33.6 Kbps
Incoming Fax Routing
Send to e-Filing, File (SMB or FTP of IPX), E-mail, I-Fax and PSTN-FAX (I-FAX function)
Communication
Super G3
Network Fax
Windows Vista SP2 (32 & 64 bit), Windows Server 2008 SP2 (32 & 62bit), Windows Server 2008 R2 SP1 (64 bit), Windows 7 SP1 (32 & 64bit), Windows 8/8.1 (32 & 64 bit), Windows Server 2012/2012 R2 (64 bit), Windows 10 (32 & 64bit)
Compression
MH/MR/MMR/JBIG

COPY

Resolution
Scan: 600 x 600 dpi Print: 600 x 600 dpi, 2400 x 600 dpi with smoothing
Colour Modes
Auto-Colour (ACS), Full Colour, Twin Colour, Mono Colour, Monochrome
First Copy Output Time
Colour: Approx. 9.5 seconds, Monochrome: Approx. 7.1 seconds
Colour Settings
Hue, Saturation, Colour Balance, RGB adjustment 5 one-touch modes
Zoom
25% to 400% platen and Document Feeder
Copy Modes
Black, Full Colour, Auto Colour, Twin Colour, Mono Colour and Auto Colour Selection (ACS)
Copy Functions
Electronic Sort, Rotate Sort, ID Card Copy, Edge Erase, 2-in-1 / 4-in-1 mode
[This Class 1 laser product complies with IEC60825-1]. Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Productivity and paper specifications are related to paper size of A4 and a paper weight of 80 g/m2 if not otherwise mentioned. Warm-up time and print speed may vary depending on the operating environment.

1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

* Optional

Copyright ©2018 TOSHIBA TEC.

Enquire about the Toshiba e-Studio

Optional Extras:

More about the Toshiba e-Studio

CONNECT. INTEGRATE. SIMPLIFY.

ADVANCED E-BRIDGE NEXT TECHNOLOGY

Toshiba’s next-generation e-BRIDGE architecture features an embedded web browser, 4 GB RAM and the Toshiba secure hard disk drive enabling the MFP to easily drive Toshiba’s internally developed solutions or even third-party applications.

Create a lasting impression with high-quality document output in colour and monochrome with a resolution of up to 600 dpi x 1200 dpi.

SIMPLE, SMART AND STYLISH.

A new 10.1” tablet-style touch screen with an embedded web browser is easy to use and customisable to meet your needs.
Flexible integration with third-party solutions applications, an embedded web browser brings the workflow to one location, at your fingertips. This is all  part of the bold new look being introduced across our new e-STUDIO series.

OPERABILITY

Check and proof your work on the fly with FAX Preview (of received FAX) and an enhanced scan preview complete with the ability to rotate theimage and change the page.

SEAMLESS CONNECTIVITY TO THE CLOUD

Optional e-BRIDGE Plus Connectors for Microsoft OneDrive, Google Drive and Dropbox let you send your documents directly to or print from these cloud services via the MFP. Supports Business Cloud Services (Office 365) with authentication by NFC.

ENHANCED CUSTOMISING FUNCTIONS

So you can enjoy greater userability we have enhancemed the User Interface customising functions and strengthened our embedded apps platform. We've also enhanced the scanning function by allowing you to customise the scan size.

BUILT IN CONVENIENCE

A choice of optional card readers not only gives you fast and convenient access to your print jobs but also increases data security. As does the new security standard HCD-PP (Hard Copy Device Protection).

RESPONSIBILITY FOR THE PLANET

Innovation ensures that our environment is part of the equation, which is precisely what we do at Toshiba. This state-of-the-art MFP is RoHS compliant and uses recycled plastics and a low-power Super Sleep Mode to save resources.

ENERGY STAR Tier 2 compliance means this system meets the latest, most stringent environmental requirements.
