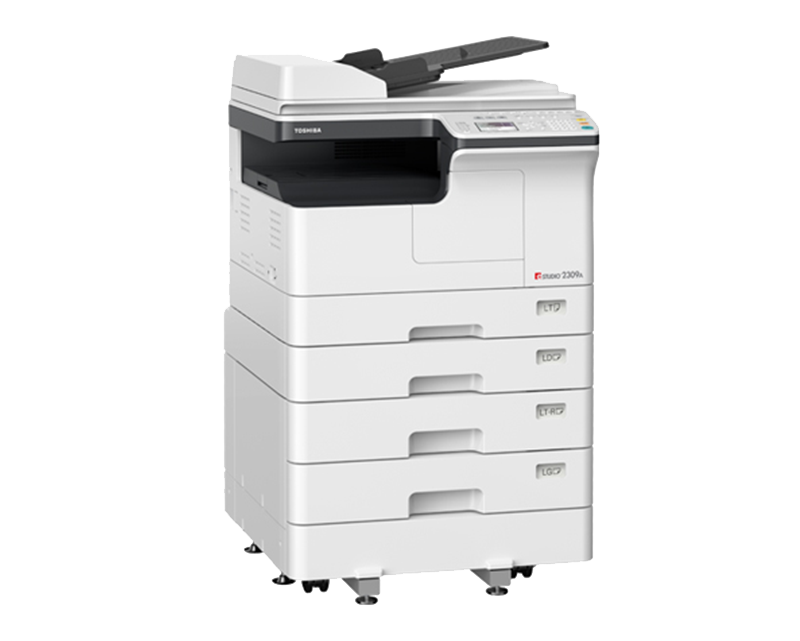

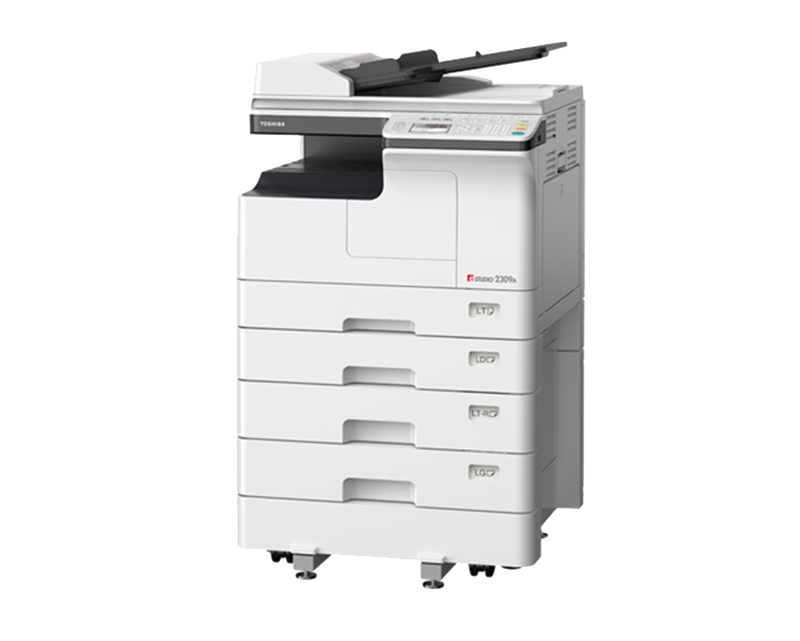

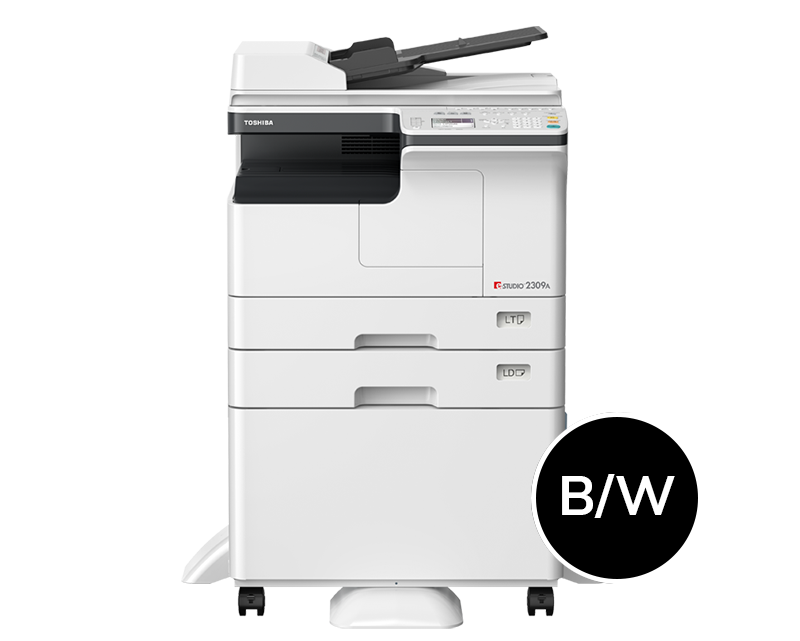

Toshiba e-Studio

This professional monochrome MFD delivers flexibility and efficiency for your office. Compact in design, the eā€STUDIO2309A is a cost effective A3 BW print device with a small footprint.

Download Brochure Make an Enquiry Contact us


Features of the Toshiba e-Studio

GENERAL

Dimensions & Weight
575 x 540 x 402 mm (W x D x H), ~ 27 kg
Paper Size & Weight
Approx. 20 seconds, Bypass: A5R-A3, 52-163 gsm
Controller Type
Toshiba e-BRIDGE
Warm-up Time
Approx. 20 seconds
Paper Capacity
1x 250 sheets (Cassette), 100 sheets (Bypass) Maximum: 600 sheets
Memory
512 MB
Print Speed
20/23 ppm (A4), 14/14 ppm (A3)
Interface
High Speed USB 2.0

PRINT

Mobile Printing
Mobile Printing
Resolution
Max. 2,400 x 600 dpi with smoothing
Page Description Languages
Graphic Device Interface
Print Functions
2-sided printing (re-feed via the bypass or cassette), Multiple pages per sheet,Toner save mode
Supported Systems
Windows 8/7/Vista/Server 2008/Server 2003 (32/64 bit), Server 2012/Server 2008R2 (64 bit)

SCAN

Scan Functions
Scan to USB, Local TWAIN scan
Resolution
Max. 600 x 600 dpi
Scan Speed
23/7 ipm (monochrome/colour with 300 dpi)
Document Feeder
50-sheet capacity, A5R-A3, 50-104 gsm
Scan Modes
Colour, Greyscale, Monochrome
File Formats
Depends on TWAIN compatible application

FAX

Transmission Speed
Approx. 3 seconds per page
Incoming Fax Routing
To shared folder (SMB, FTP, IPX/SPX), E-mail, e-Filing
Communication
Super G3, G3 - (opt. 2nd line), Internet Fax T.37
Network Fax
Driver for Windows 8/7/Vista (32/64 bit), Windows Server 2012 R2/Server 2008 R2 (64 bit)
Compression
JBIG, MMR, MR, MH

COPY

Resolution
Scan: 600 x 600 dpi, Print: max. 2,400 x 600 dpi with smoothing
First Copy Output Time
Approx. 7 seconds
Zoom
25-400%
Copy Modes
Text, Text/Photo, Photo, Background erase
[This Class 1 laser product complies with IEC60825-1]. Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Productivity and paper specifications are related to paper size of A4 and a paper weight of 80 g/m2 if not otherwise mentioned. Warm-up time and print speed may vary depending on the operating environment.

1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

* Optional

Enquire about the Toshiba e-Studio

Optional Extras:

More about the Toshiba e-Studio

COMPACT DESIGN

Print, scan and copy with up to 23 pages per minutes output in A4 all in one compact design

CONNECTIVITY

This system easily integrates into existing networks. The standard network capability can even be extended with the optional Wireless LAN module, to give you more flexibility.

ALL IN ONE

Whatever you need, Toshiba’s monochrome printing systems are there to support you. Packed with multifunctional potential the e-STUDIO2309A delivers outstanding performance. Brilliant print quality, crystal-clear colour scans and quick copies are packed in a stylish design. Add the optional fax and these systems comfortably meet all demands of the modern office environment.

EASE-OF-USE

The intuitive user interface provides highest possible efficiency when operating these new systems. Logical key configuration and a clearly structured menu allow users to enjoy all benefits right from the start.

MULTIPLE OPTIONS

With a maximum capacity of 1700 sheets, different trays can be configured.
